How GSM Communication Works in Vehicle Trackers: Understanding How Data Reaches the Platform

Many people believe that GPS is responsible for the entire vehicle tracking process. In reality, GPS only determines the equipment's geographical position. For this information to be sent to the monitoring center, a second equally important component is needed: the mobile communication system.

This is where GSM technology and its evolutions, such as 3G, 4G, LTE-M, and other networks used in Internet of Things (IoT) devices, come into play.

In this article, you will understand how this communication works, what role the chip installed in the tracker plays, and why carrier coverage directly influences system performance.

What is GSM?

GSM stands for Global System for Mobile Communications.

It is an international standard created to enable communication between devices through mobile phone networks.

Although more modern technologies exist today, the term "GSM" is still widely used to represent the cellular communication present in many trackers.

GPS finds the position. GSM sends that information.

A simple way to understand the operation is to separate the functions:

GPS/GNSS: determines where the vehicle is. Mobile network (GSM, 3G, 4G, LTE-M): transmits this information to the platform.

Without mobile communication, the tracker still knows its position but cannot send it to the monitoring system.

How does data transmission occur?

The process happens in a few steps:

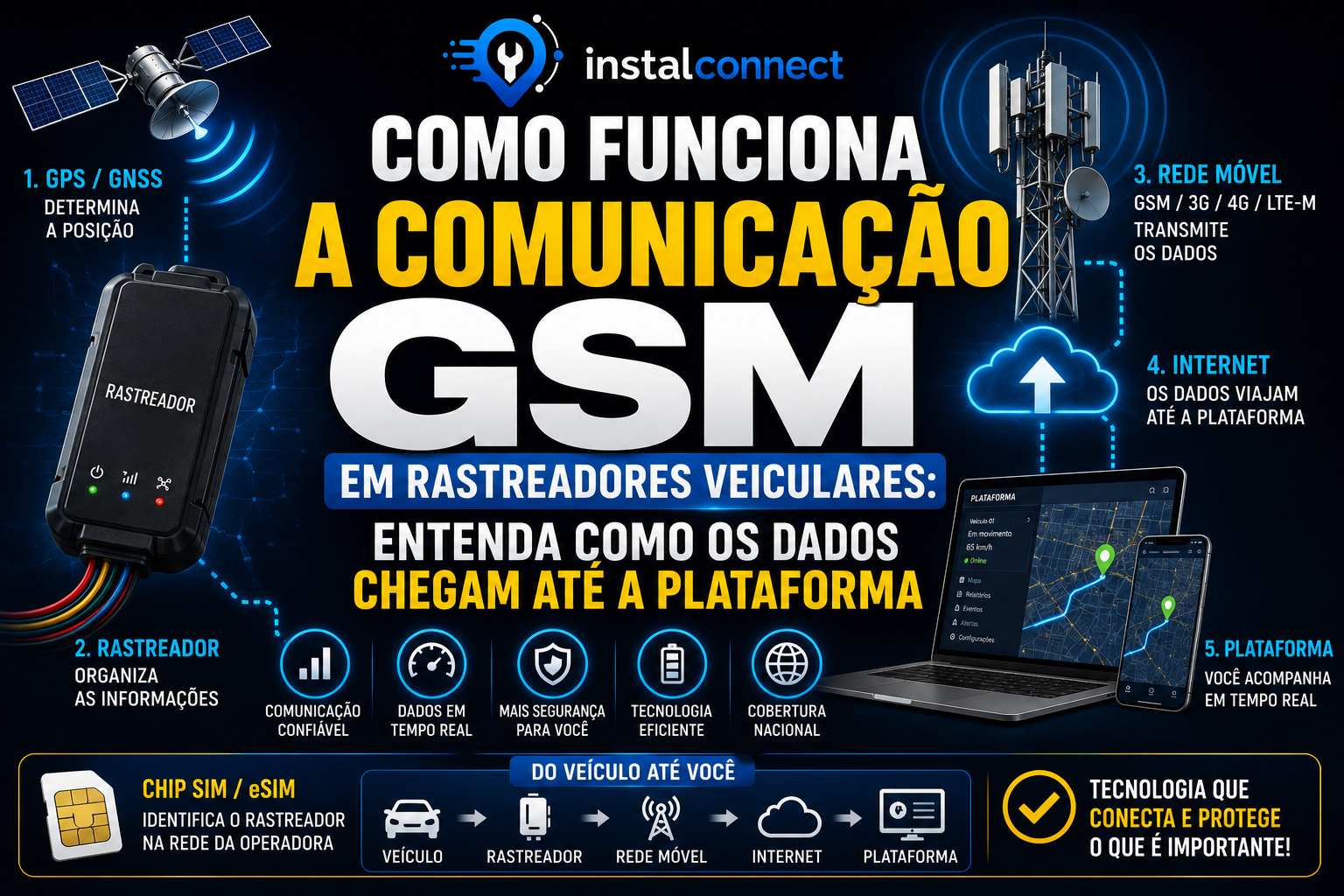

The GNSS receiver calculates the vehicle's position. The tracker organizes this information. The communication module connects to the carrier's network. Data is sent via mobile internet. The platform receives, processes, and displays the real-time location.

This entire process can occur in a few seconds, depending on the equipment's configuration and the quality of the coverage.

The role of the SIM chip

Like a smartphone, the tracker uses a SIM chip (or eSIM, in some models).

This chip identifies the equipment on the carrier's network and allows data transmission.

It can be configured to use specific M2M (Machine to Machine) or IoT (Internet of Things) communication plans, developed for connected devices.

What happens when there's no signal?

If the vehicle is in an area without carrier coverage, the tracker may not be able to transmit information immediately.

Depending on the equipment, data may be stored in internal memory and automatically sent when the connection is re-established.

This feature is known as offline event storage.

Does carrier coverage influence performance?

Yes.

The quality of coverage directly affects:

transmission time; communication stability; update frequency; equipment availability.

Therefore, it is important to use carriers with good coverage in the regions where vehicles operate.

What is APN?

APN (Access Point Name) functions as a setting that tells the tracker how to access the carrier's data network.

If configured incorrectly, the equipment may:

connect to the network but not transmit data; remain offline; experience communication failures.

During installation, always confirm that the APN used matches the carrier's and manufacturer's guidelines.

GSM, 3G, 4G, and LTE-M: what's the difference?

Over the years, mobile networks have evolved significantly.

GSM (2G) wide coverage; low power consumption; used by many traditional trackers. 3G higher transmission speed; currently being deactivated in several countries. 4G (LTE) high speed; lower latency; excellent for modern applications. LTE-M

Technology developed specifically for IoT devices.

Offers:

lower power consumption; better coverage in enclosed environments; higher efficiency for continuously connected equipment. Communication and power consumption

Data transmission represents one of the tracker's most energy-intensive activities.

Modern equipment uses intelligent strategies to reduce this consumption, adjusting the sending frequency according to the vehicle's status and the configuration defined by the system.

How to identify communication problems?

The main symptoms are:

tracker offline; outdated location; intermittent failures; delay in position updates; loss of communication in certain regions.

Diagnosis should consider:

carrier coverage; SIM chip; APN; GSM antenna; equipment power supply. Common errors

Among the problems encountered are:

unactivated chip; incorrectly configured APN; poorly positioned GSM antenna; insufficient coverage; damaged connectors; unstable power supply; inadequate carrier for the region. GSM communication checklist

Before completing the installation, confirm:

✔ SIM chip correctly installed.

✔ APN configured.

✔ Good signal strength.

✔ GSM antenna correctly positioned.

✔ Communication with the platform is functioning.

✔ Test performed under different conditions.

✔ Equipment configured.

✔ Installation documented.

Benefits of understanding GSM communication

Understanding this technology allows for:

faster diagnostics; reduced maintenance time; better carrier selection; increased system stability; reduction of communication failures; better customer support. Conclusion

GSM communication is the bridge between the tracker installed in the vehicle and the monitoring platform. While GPS determines the position, the mobile network is responsible for transmitting this information so it can be viewed in real-time.

Understanding how this technology works helps installers and tracking companies diagnose faults more quickly, correctly configure equipment, and offer more reliable service to customers. In an increasingly connected market, mastering mobile communication concepts is as important as knowing how GPS works.

Frequently Asked Questions (FAQ)

Does GPS work without GSM?

Yes. GPS continues to calculate the vehicle's position, but without mobile communication, this information does not reach the platform.

Does every tracker use a SIM chip?

Most models use a physical SIM chip or eSIM to transmit data over the mobile network.

What happens when the vehicle enters an area without signal?

Depending on the equipment, information may be stored and automatically transmitted when the connection is re-established.

What is APN?

It is the configuration that allows the tracker to access the carrier's data network and send information to the platform.

Is LTE-M better than GSM?

It depends on the application. For IoT devices, such as modern trackers, LTE-M offers advantages like lower power consumption, better coverage, and higher efficiency.
